Portable Solar Panel

High Efficiency Folding PV Module

Get Pricing

Portable Solar Panel

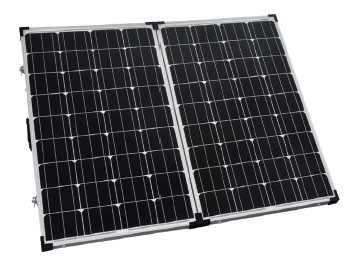

Portable Solar Panel Opened

Technical Specs

Electrical Characteristics

Product Code	SGM-2F-200W
Maximum power(Pmax)	2X100W
Voltage at Pmax(Vmp)	17.6
Current at Pmax(Imp)	11.43
Open-circuit voltage(Voc)	21.1
Short -circuit current(Isc)	12.34
Cells Efficiency(%)	17.26%
The maximum system voltage	1000VDC(IEC)
Output power tolerance	±3%

Specifications

Cells	Germany A grade solarwarld solar cell
No.of cells and connections	36(4X9)
Module dimension	670100535mm
Weight	22.28 KG
Certificat ion	CE,RoHS,ISO
