Backup Pak BENEFITS
- Uninterruptible Power in a Single Box
The Backup Pak is one of the ﬁrst products that can operate like an uninterruptible power supply (UPS) for a cottage or home! Provide backup power for your appliances and critical devices with a single box. It includes batteries to start your system.
- Saves Money and Time
The Backup Pak charges the batteries while the grid is up, saving you the expenses of a costly and noisy diesel generator. Installation is extremely simple, saving you time and cost of connecting separate components. It comes pre-assembled and tested with all the necessary components and wiring, making it an easy setup for the DIY'er. Wire the Backup Pak into your electrical box and you are ready to go!
- Automatic Switchover to backup power

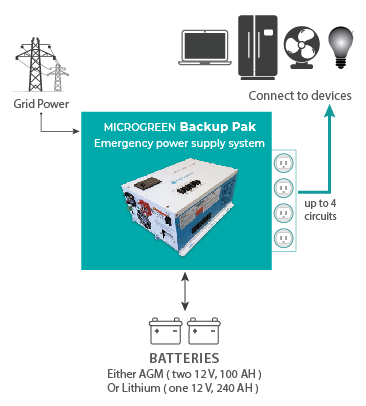

The Backup Pak supports up to 4 circuits that will automatically switch over to the back-up battery power when the grid goes down. This keeps your essential appliances and lights running.
- Power Management Capability
The output AC circuits have breakers to manage power consumption by switching them on and off periodically. For the fridge and furnace, turn ON the breakers every 4 hours for 20 minutes. This will extend the overall operating time of the battery storage.
- Remote Notiﬁcation and Control (optional)
Get notiﬁed on your phone when the grid goes down, using the optional IoT app that provides status updates. This app also lets the user switch on or off two AC circuits to manage power usage.
- Expandable Capacity
Additional batteries can be added to increase the energy capacity of the system.
Backup Pak KEY FEATURES
- All components assembled in a single box, safe to handle, ESA certiﬁed
Inverter, AC monitor, circuit protection, and connectors are integrated into a single box, saving cost of obtaining separate components and integrating them.
- Automatic switchover to back-up power for 4 circuits
Supports up to 4 circuits with breakers that will switch over, and can be separately enabled/disabled.
Comes with either AGM batteries (two 12 volt, 100 AH) or Lithium battery (one 24 volt, 240 AH).
- Intelligent connect (IoT) option
Get notiﬁcations when the grid goes down, and control which circuits are enabled during the blackout via a phone app.
- Expandable capacity
Capacity can be extended for bigger energy usages by adding additional batteries.
Backup Pak product specifications summary
|INVERTER POWER RATING
||3 kW pure sine wave at 12 V
||14 separate receptacles rated at 15 amps each
||35 amp input, 35 amp output
||Either two AGM 12-Volt batteries, 100 AH
Or one lithium 12 -volt, 240 AH
||484 mm x 328 mm x 192 mm
