ENERGY PAK Lithium Batteries
More power and less weight at lower cost


Choose lithium over lead acid batteries!

The Energy Pak lithium battery outperforms AGM lead acid batteries in all aspects. The lithium battery costs less, weighs less, is more powerful, has a longer life time, charges faster, and is of higher quality.

This is an ideal battery for new installations or as a replacement for existing lead acids, for solar systems, back-up systems and general off-grid power.

The Energy Pak uses battery cells from the world leader CATL.


3 Models Available

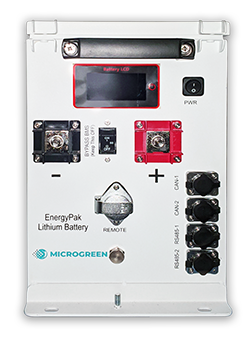

Energy Pak 3
Lithium battery for RV or boat power
3 kWh capacity
12 V output

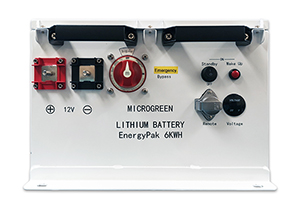

Energy Pak 6
Lithium battery for typical cottage/modular home off-grid solar system or back-up system
6 kWh capacity
12/24 V output

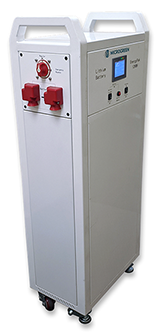

Energy Pak 12
Lithium battery for home off-grid system, transit vehicle emissions reduction system
12 kWh capacity
24/48 V output
Load Evaluation

Based on your electrical power usage, we can calculate your electrical load and determine a system that best fits your needs.


Find out how the Energy Pak can save you money

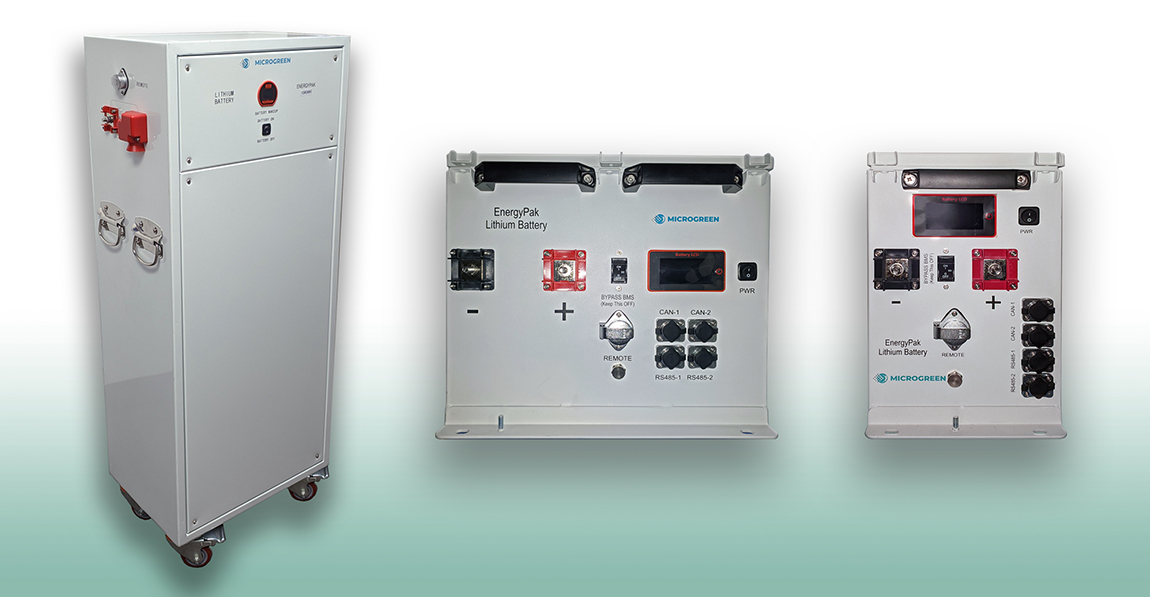

Energy Pak lithium batteries

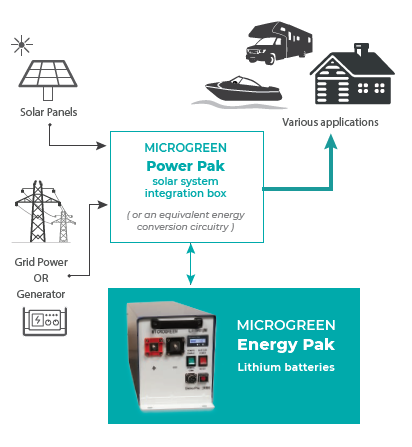

Energy Pak lithium battery block diagram




FEATURES

  • Low cost
    Lithium battery costs less over its entire lifetime.
  • Light weight
    Weighs 75% less than lead acid. Saves fuel when used in a vehicle or a boat.
  • Powerful
    Able to deliver higher peak power for heavy loads than lead acid - continuous current as high as 250 A and surge current of 700 A.
  • Fast charging
    Fully charges in 2 hours.
  • Long life time
    Typically 4000 charging cycles, or more than 3 times the lifetime of lead acid.
  • High quality
    Energy Pak uses battery cells from the world leader CATL, and are backed by a 2 year warranty plus local after-sales service, ensuring trouble-free performance.
  • Built-in Battery Management System (BMS)
    Ensures the safe operation of the battery by protecting it from over charge, over discharge and over current, thereby extending the lifetime of the battery

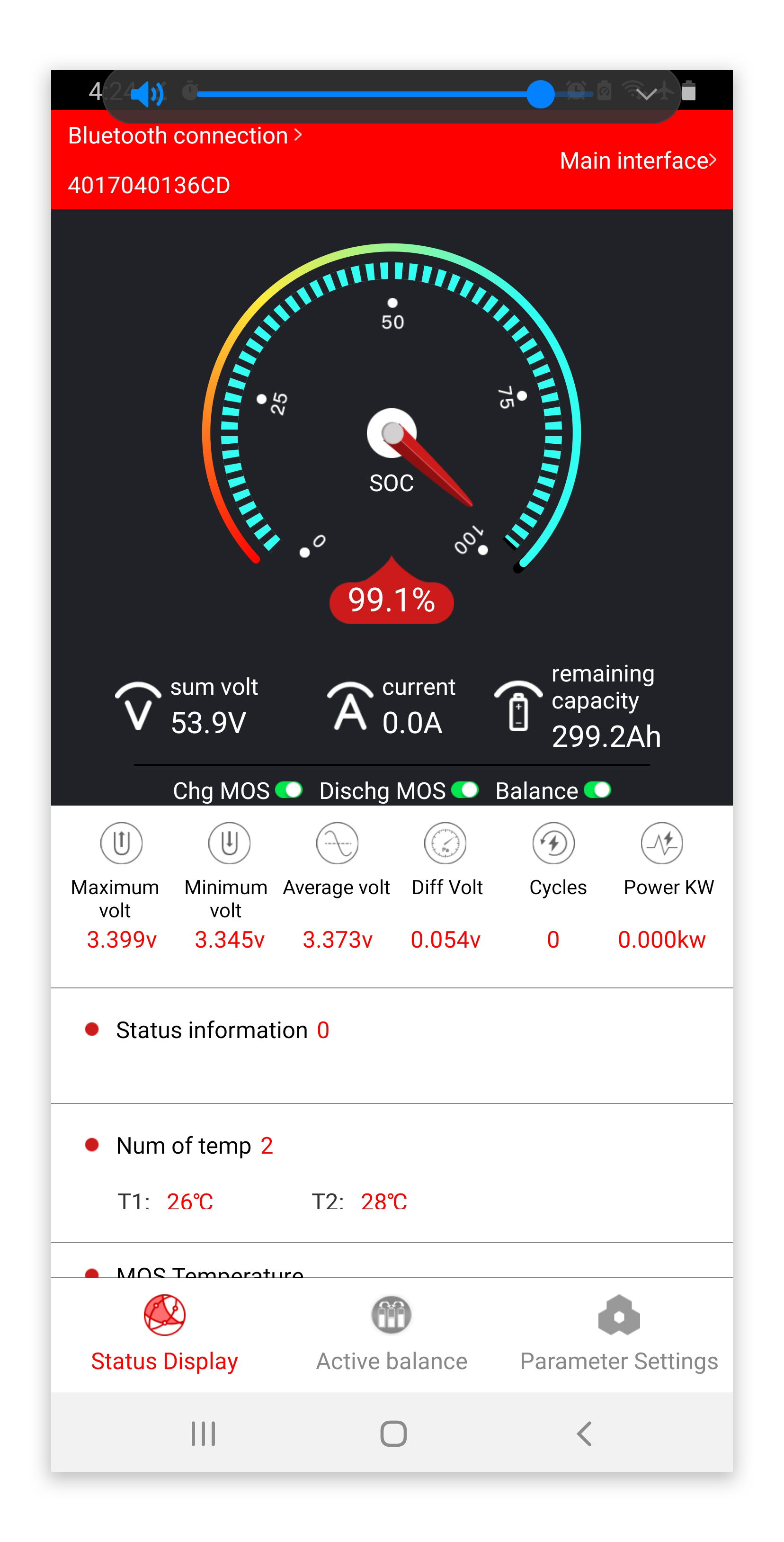

  • Battery monitoring
    User can monitor the battery status through an LCD display or computer connection.
  • Convenient
    Simple connections make lithium batteries easier to deploy and use.
  • Customizable
    Microgreen can make a custom configuration to match your power, voltage and capacity needs.


Energy Pak Lithium Batteries Specifications Summary
MODEL Energy Pak 3 Energy Pak 6 Energy Pak 12
ENERGY 3 kWh 6 kWh 12 kWh
WEIGHT 33 kg 60 kg 115 kg
DIMENSIONS L x W x H
60 x 21 x 27 cm		 L x W x H
60 x 42 x 27 cm		 L x W x H
40 x 42 x 60 cm
OUTPUT VOLTAGE 12 V 12 V or 24 V 24 V or 48 V
MAXIMUM POWER 3 kW 3 kW or 6 kW 6 kW or 12 kW
OPERATING LIFE TIME 4000 cycles 4000 cycles 4000 cycles
WARRANTY 2 years 2 years 2 years

Data Sheet downloads Energy Pak lithium batteries data sheet
